91,5" IIYAMA TE9218UWI-B1AG ProLite 5K

ProLite TE9218UWI-B1AG

92” Ultra-wide Interactive 5K UHD display with 21:9 panoramic view

• Microsoft Teams Front Row
• 21:9 Ultra-Wide Screen
• 5K - 11 Mega Pixels
• PURETOUCH-IR+
• iiWare 11
• USB-C Connection
• Speakers & Subwoofers
• 8-Array Microphone

Display parameters

Design: Thin bezel
Diagonal: 91.5
Panel: VA, haze 25%
Native resolution: 5120 x 2160 (14.75 megapixels, 5K UHD)
Aspect ratio: 21:9
Brightness: 500 cd/m
Static contrast: 4000:1
Light transmission: 92%
Response time: 6.5ms
Viewing angles: 178/178
Color range: 1.07B 10bit (NTSC 90%)
Point spacing: 0.418
Color: black, matte

Touch

Touch technology: PureTouch-IR+
Touch points: 50, 32pt writing (HID, only with supported OS)
Touch method: stylus, finger, glove
Touch interface: USB

Function

Integrated software: iiWare 11 (Android 13 OS) featuring iiyama DMS, iiyama OS, iiyama Class, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
CPU: A311D2, A76*4+A55*4(2.4GHz)
GPU: Mali G610
RAM: 8GB
ROM: 64GB
Glass thickness: 3mm
Glass hardness: 7H

Connectors/Interface/Control

• Digital input ports: HDMI x4 (1x 2.1, max. 5120x2160 @60Hz; 3x 2.0, max. 3840x2160 @60Hz, YUV444), DisplayPort x1 (1.4, max. 5120x2160 @60Hz), USB-C x2 (3.2 Gen 1, 3840x2160 @60Hz, DP Alt mode 1.2, Touch, front: 15W PD, back: 100W PD)
• Audio input: Mini jack x1
• Monitor control input: RS-232c x1 (DSUB 9pin)
• Digital output ports: HDMI x1 (3840x2160 @60Hz, YUV/RGB444), USB-C x1 (3.2 Gen 1, 3840x2160 @60Hz (DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display))
• Audio Out: S/PDIF (Optical) x1, Mini jack x1, Speakers 2 x 20W (Front + 20W Subwoofer)
• HDCP: HDMI, DP & USB-C: 2.3
• USB Ports: x8 (media playback/peripherals/storage – front: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 15W PD, DP Alt 1.2), back side: 2x 3.2 (Gen 1, 5Gbit ), 1x USB-C 3.2 (Gen 1, 100W PD, DP Alt 1.2), top side: 2x 3.2 (Gen 1, 5Gbit))
• RJ45(LAN): x2 (Auto switch for PC & Android, 1000MB)
• Microphone: 8-Array (8m voice pick-up, Front facing)

Mechanical Information

Wall mounting: 800 x 600mm
Orientation: horizontal

Power supply

Power supply: Internal, AC 100 - 240V, 50/60Hz
Consumption [W]: 227

Package contents:

• Cables: power, USB, HDMI
• Touch pen: x4 (Dual function tips, Antibacterial)
• Manuals: user manual, safety instructions

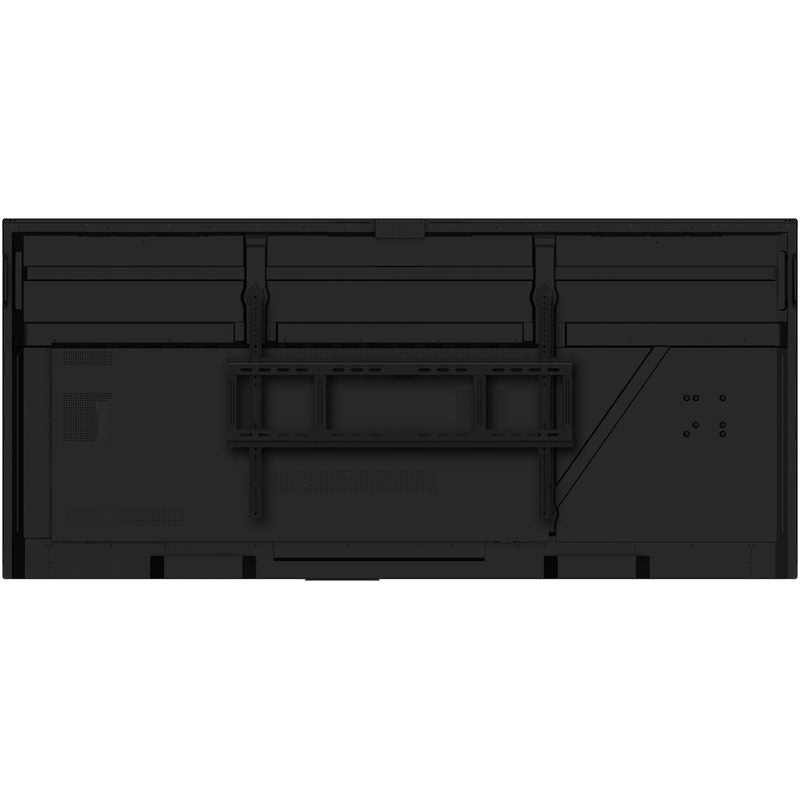

• Others: WiFi Module (OWM002), Wall mounting bracket (VESA 800x600 mm), NUC mounting bracket, Webcam mounting bracket
• Remote control: yes (battery included)

Dimensions

Dimensions (WxHxD): 2203 x 1000 x 92mm
Weight: 67.6kg
