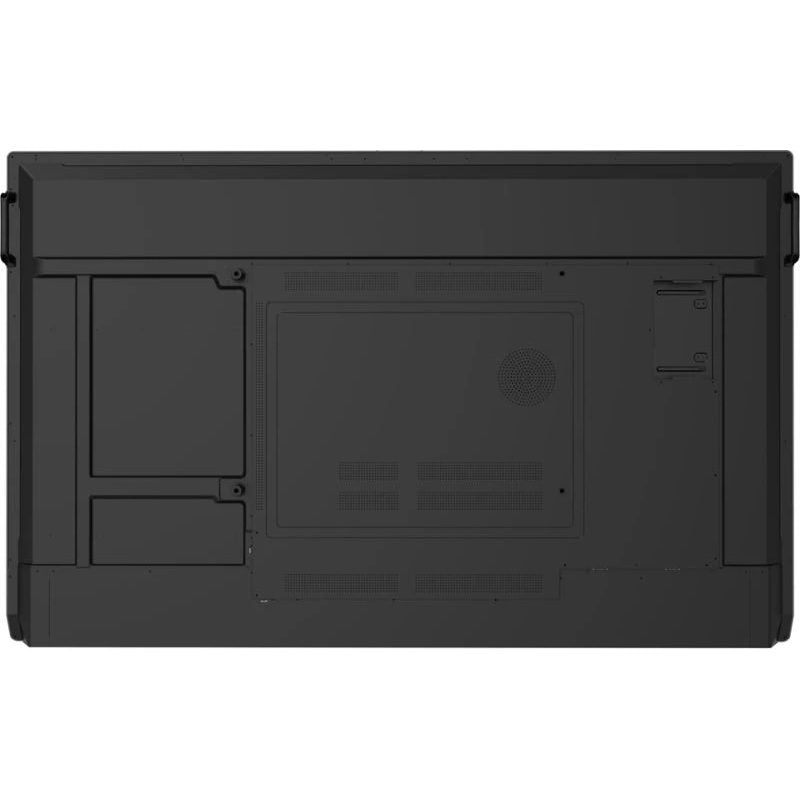

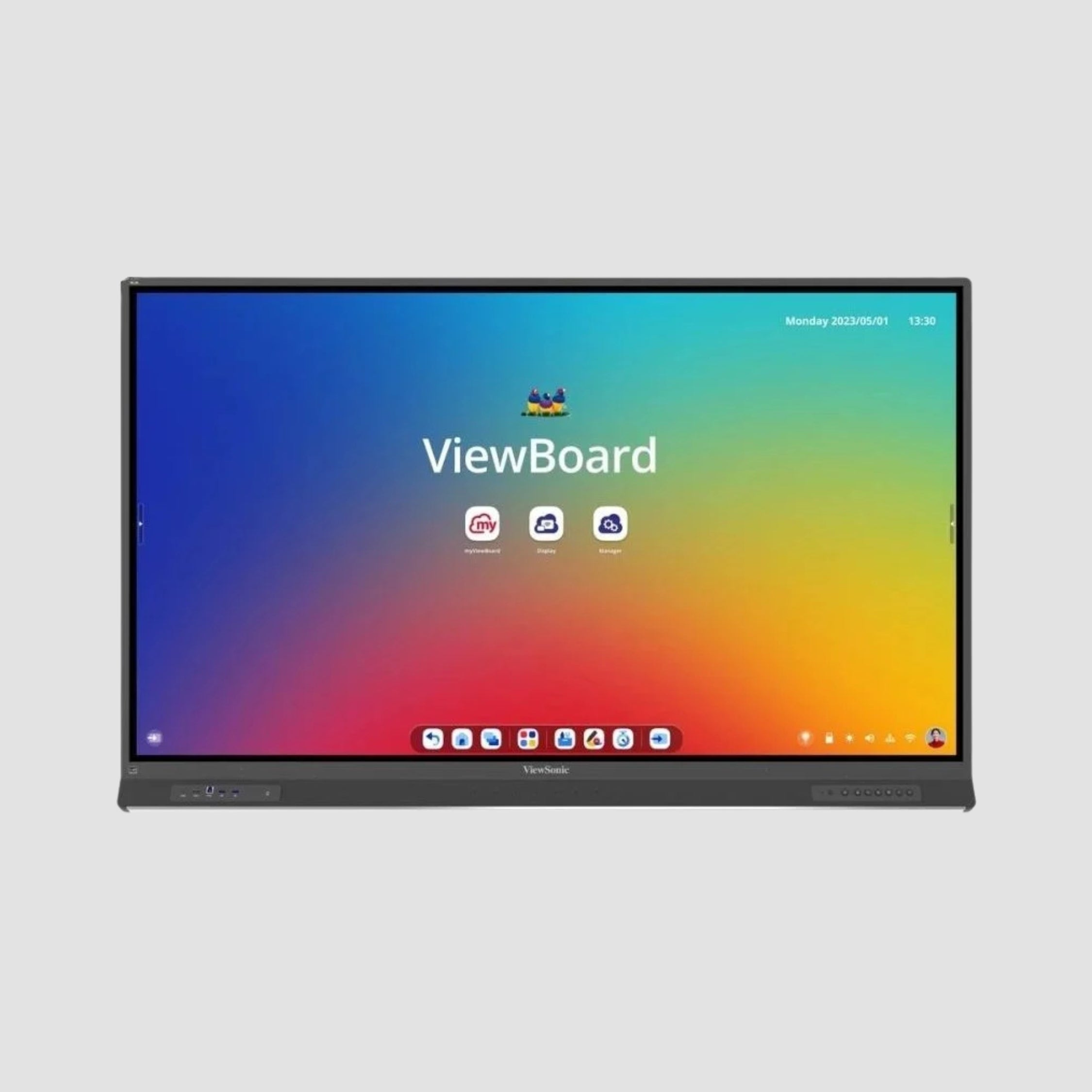

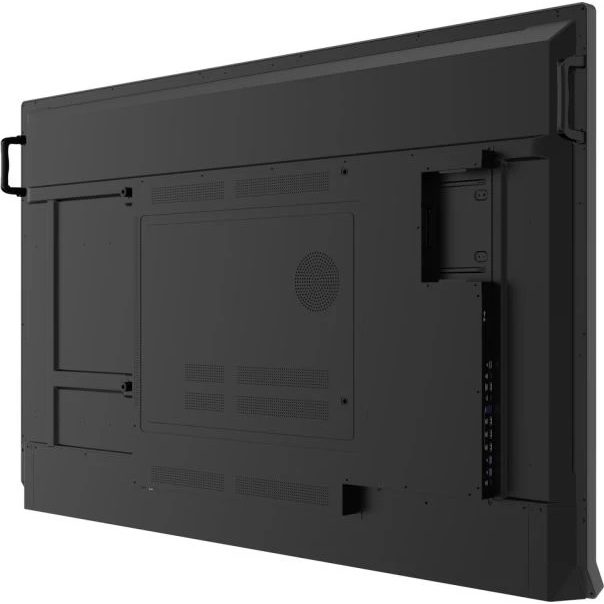

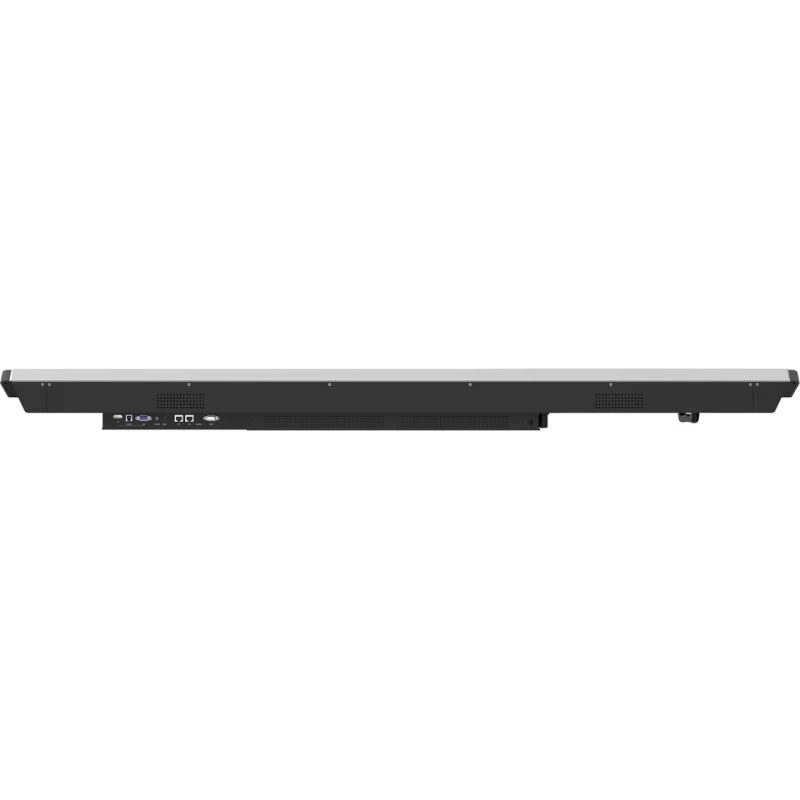

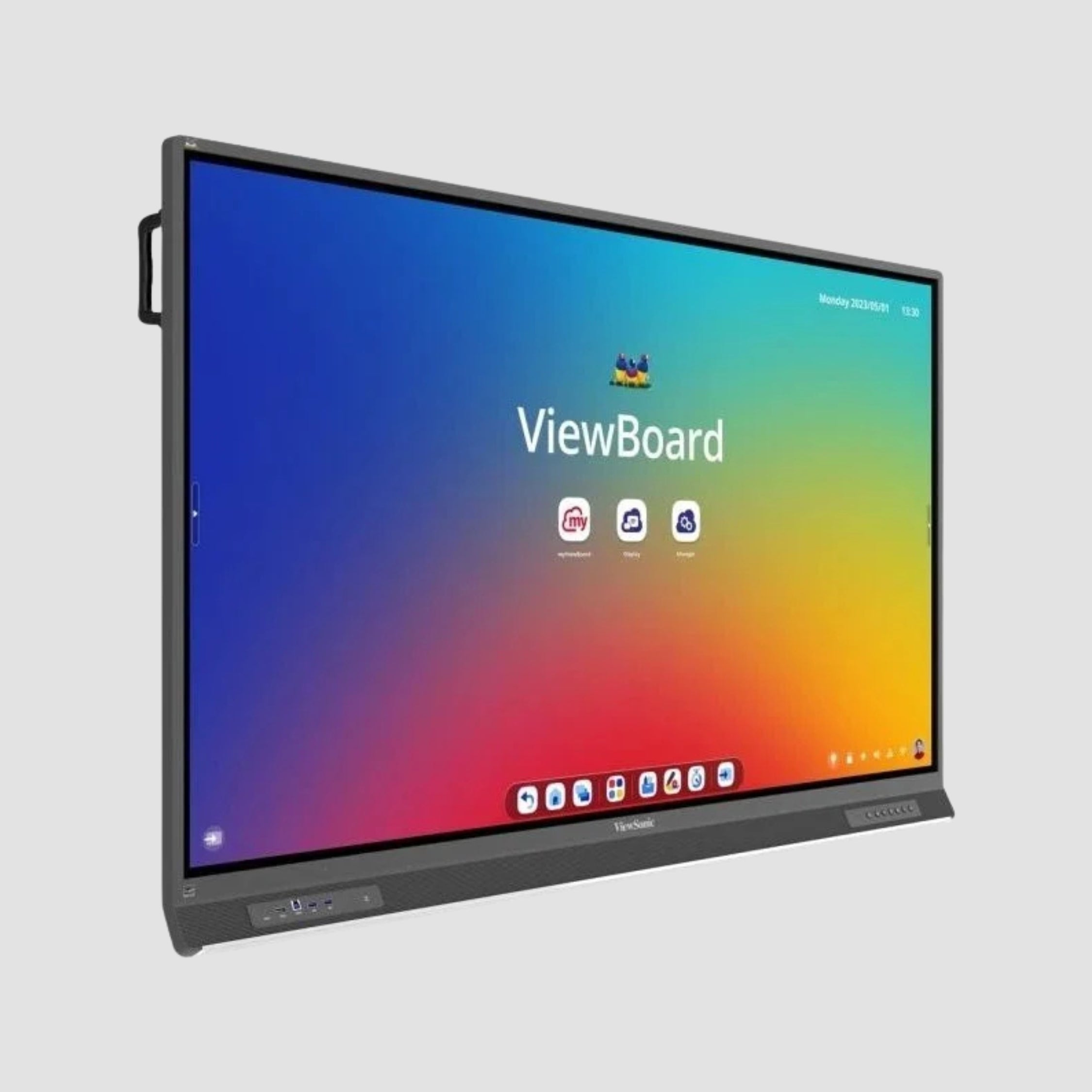

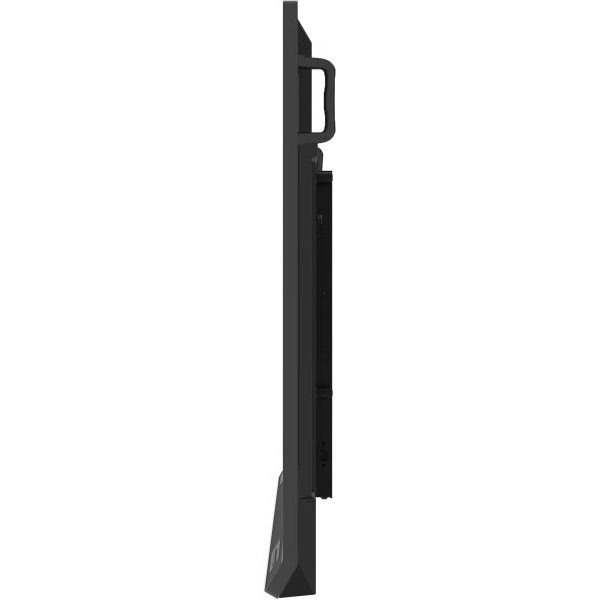

65" VIEWSONIC IFP6553 ViewBoard 4K

65" 4K LED ViewSonic IFP6553 interactive display
Discover the future of interactive learning with the dynamic ViewBoard IFP53 series.
SSO and NFC card login add convenience and provide quick access to personalized launchers and cloud storage. With quick launch annotation and the ability to quickly switch between four colors, you can capture ideas the moment inspiration strikes. Powered by Android 14, it features a high-performance octa-core processor, complemented by 8GB of RAM and 8GB of virtual memory, ensuring seamless connectivity and continuous productivity.
Integrated ViewSonic Education Software supports collaboration and engagement in the classroom with interactive digital tools designed to maximize student potential.

• NFC and SSO login for quick access to intuitive launcher and personal settings
• simplified device management with ViewSonic Manager
• Quick start annotation, sketching and four-color switching with the stylus
• Octa-core processor with 8GB RAM and 8GB virtual memory for smooth multitasking
• Four USB-C ports ensure seamless connectivity and support charging up to 100W
• Android 14 with integrated ViewSonic Education software
• blue light filter, Advanced Eye-Care Technology

Panel type: TFT LCD
Screen type: interactive touch (IR)
Backlight: Direct LED
Backlight life: 50,000 hours
Diagonal [inches]: 65"
Resolution: 3840 x 2160 UHD
Refresh rate [Hz]: 60 Hz

Aspect ratio: 16:9
Display surface: anti-glare coating with 7H hardness
Brightness [cd/m2]: 450
Contrast: 5000:1

Response time [ms]: 6.5 ms (typical)
Viewing angles (Horizontal/Vertical): 178°/178°
Number of colors: 1.073 billion

Platform:

• Processor: Octa-core CPU (A73*4 + A53*4)
• RAM: 8GB (physical RAM) + 8GB (virtual RAM) - notice on using virtual RAM see manufacturer website
• storage: 128GB

Built-in OS: Android 14

Software bundle:

• basic annotation software: myViewBoard for Android
• annotation software Pro: myViewBoard for Windows (built into VPC)
• wireless presentation: Display, vCast
• Device Management: Manager
• ViewSonic Launcher: yes

Stand - screen orientation:

• Landscape
• frame - slim

Wall mounting: VESA mount 600mm x 400mm

Speakers: 2x 20W front soundbar + 1x 20W subwoofer
Microphone: built-in eight-band microphone
Top Camera Plate: yes

Connectors:
INPUT:

• 4x HDMI (1x front HDMI2.1 with CEC, 3x rear - 2x HDMI2.1 with CEC + 1x HDMI2.1 with CEC, ARC)
• 1x RGB/VGA (analog)
• 1x DisplayPort
• 1x audio input (PC audio in)
• 1x RS232
• 1x OPS - slot for OPS module

EXIT:

• 1x HDMI
• 1x audio output (3.5mm)
• 1x SPDIF

HIND:

• 2x RJ45 (1 in and 1 out)

USB:

• type A: 4x USB 3.0 (2x front, 2x rear) and 1x USB2.0 rear
• type B: 3x USB 3.0 (1x front and 2x rear)
• Type C: 3x input (1x front USB3.0, DP1.2, Ethernet 100M, PD 100W, 1x rear USB3.0, DP1.2, Ethernet 100M, PD 65W, 1x rear USB3.0, PD 15W), 1x DP output

Touch:
Type/Technology: Ultra Fine Touch technology
Touch resolution: 32767 × 32767
Touch point: Windows: 40 points of touch, Android: 20 points of touch

Compatible slot-in PC

• VPCF5-W33-G1, VPC37-W53-G1, VPC35-W53-G1, VPC-A31-O1

Special features:

• All-in-one USB port - USB 3.0 "SmartPort USB" on all channels
• simple LAN sharing between IFP and plug-in device - 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
• light sensor, NFC reader, pen sensor: yes

Power supply: internal (100-240V AC; 50/60Hz)
Consumption (W): 85.68 (typical)

Color: black
Dimensions (mm): 1,485.7 x 934.6 x 118
Weight (kg): 39

EU Energy Label: (Class F)

Package contents:

• monitor
• 1x HDMI cable 2.0 (3 m) - certified HDMI LA
• 1x power cable (3m)
• 1x USB Type-C cable certified USB-IF (1.8 m)
• 1x remote control (new version) with 2 pcs AAA batteries
• 1x USB 2.0 cable for touch control (3 m)
• 2x touch pen (VB-PEN-002)
• 1x RS232 serial adapter
• 1x Camera Plate
• 8x screws (2+2 for camera board, 4 for mounting bracket, clamps)
• brief operating instructions
